Description

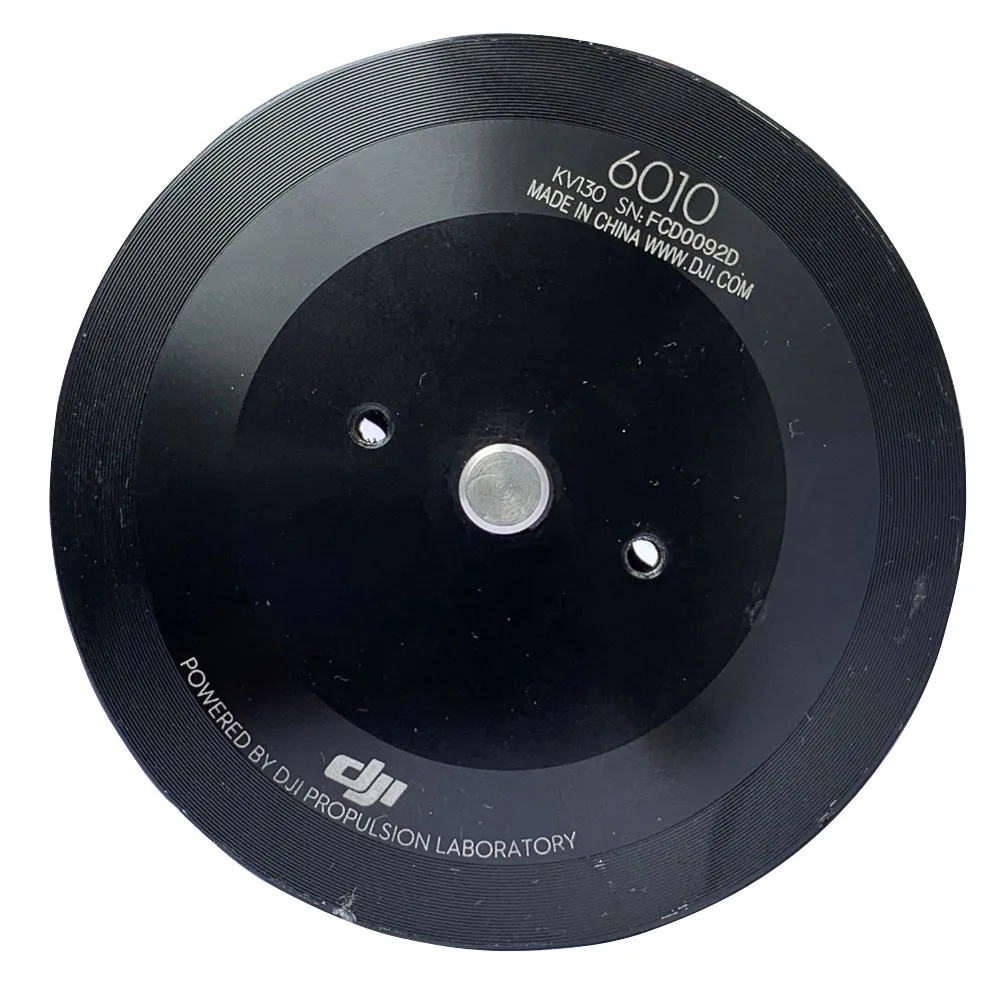

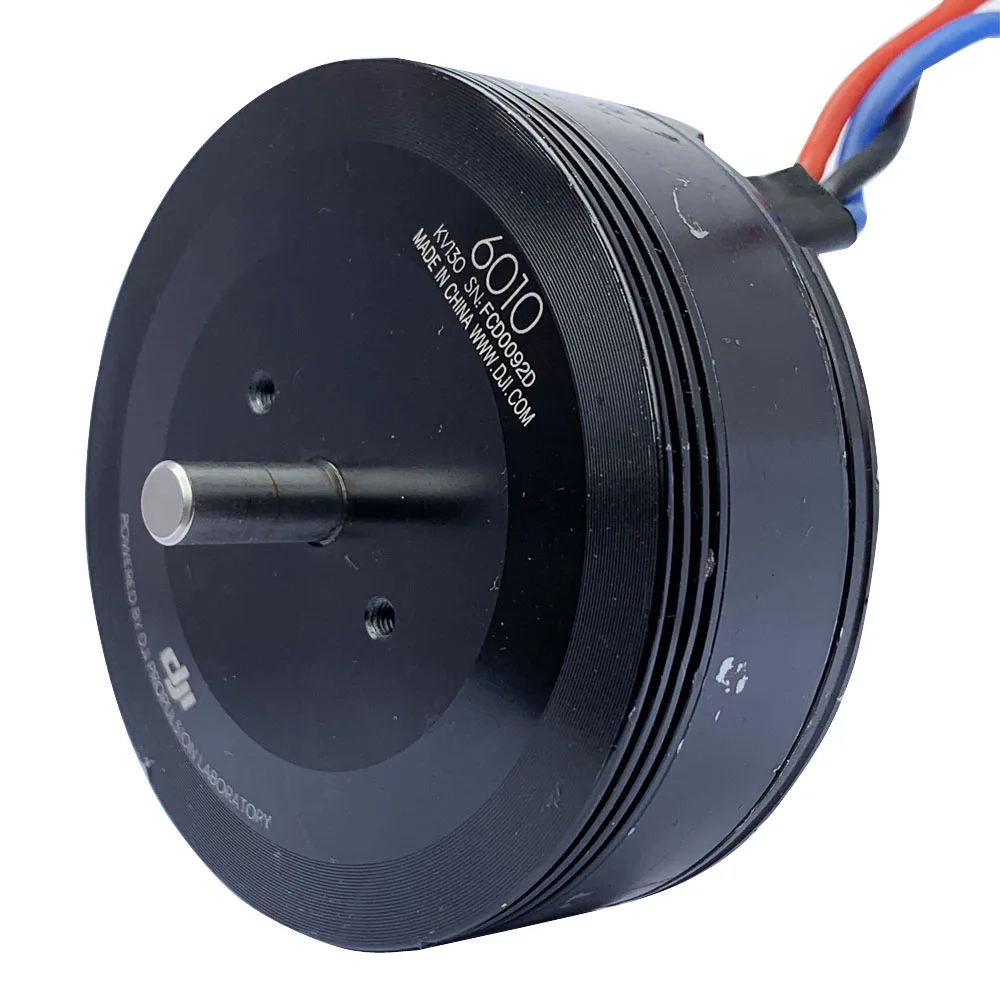

6010 Power Motor Brushless Motor UAV Motor 130kv
Internal heat dissipation and circulation air cooling of motor, suitable for long-term operation
Max Pull forces:5100g
battery:12s. 3s battery can run
Weight：230g
shaft diamater:6mm
There are scratches on the surface.see the picture
Dajiang Plant Protection Machine has exquisite workmanship and solid materials. The working voltage of the motor is about 12S 45V, but it can also work by measuring the 1685 turn/minute with 3S batteries of 11.85V.
Stator size: 60 x 10 mm
KV value: 130rpm/V
Maximum pulling force: 5.1kg/rotor
Maximum power: 770W
Motor Outer Diameter: 67mm
Overall thickness of motor: 34mm
Motor shaft diameter: 6mm
Motor shaft length: 10mm
Motor weight: 270 G
If you knows DIY winding can rebuild it

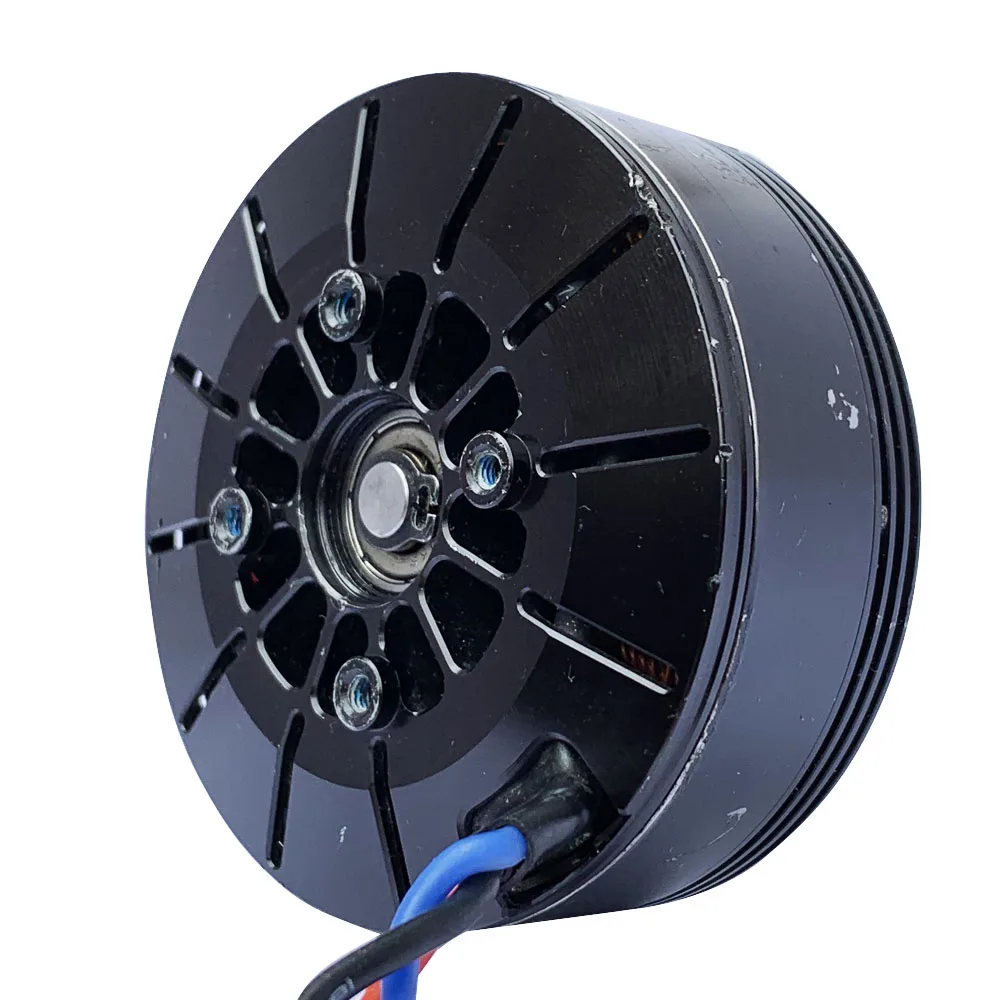

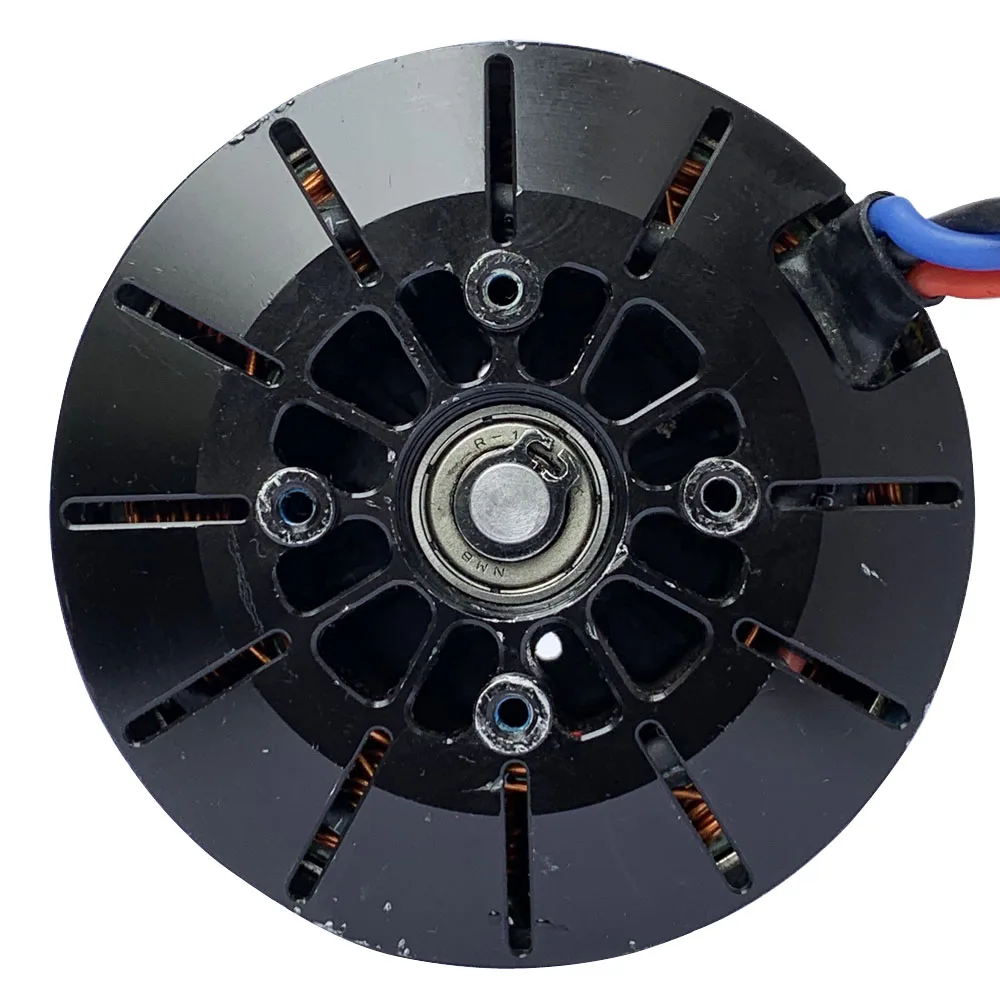

The motor is a double NSK ball bearing with a cooling fan structure. The external rotor has been dynamically balanced and calibrated. Twenty pieces of Nd-Fe-B magnetism are strong. The workmanship is exquisite and the precision material is solid.
