Arkbird Vertical Take-off and Landing (VTOL) RC Flying Wing FPV Airplane Kit

Description

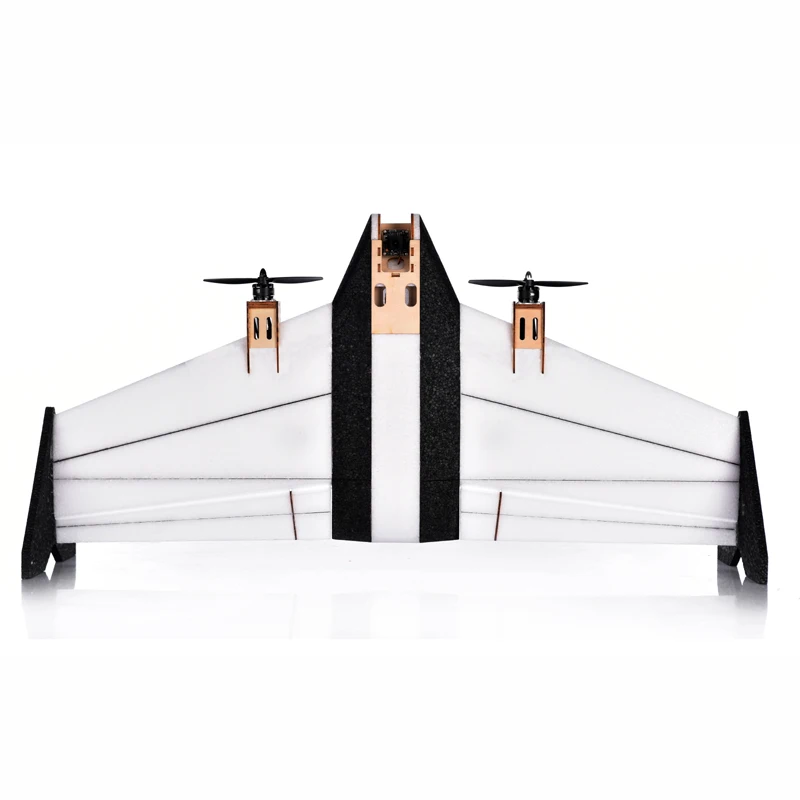

Arkbird Vertical Take-off and Landing Airplane (VTOL)

Arkbird VTOL airplane is an unique fpv fixed wing plane with vertical taken off and landing function, perfectly compatible with Arkbird autopilot 2.0 and 2.0 lite, including balance mode, fence mode, return home mode, VTOL mode and other wonderful Arkbird autopilot modes. It is also a unique fixed wings fpv plane with quads characteristics in the FPV field.(PS, need Arkbird Autopilot 2.0 or 2.0 lite)

Features:

860mm wingspan, suitable size to carry without disassembly;

25 minutes of 45km per hour speed in horizontal flight; Balance mode, return home mode, fence mode, VTOL mode and other typical Arkbird typical modes are changeable during flight;

8 minutes of VTOL mode, similar control skill as quads;

One button switch between Arkbird level flight and VTOL mode, intelligent PID controller;

Camera keeps horizontal during status switching;

Arkbird patent protection design.

Packing Detail for VTOL Plane Kit:

Packing Detail for VTOL with AP Lite: Arkbird VTOL Plane Kit, Arkbird Autopilot 2.0 Lite (Autopilot, M8N GPS, XT 60 Current Sensor for 3S battery, all necessary connection cables)

Packing Detail for VTOL with AP 2.0:Arkbird VTOL Plane Kit, Arkbird Autopilot 2.0 (Autopilot, M8N GPS,XT 60 Current Sensor for 3S battery, all necessary connection cables, Airspeed sensor)

If you need T connector of current sensor, please leave a message when order placed.

Packling List of Arkbird VTOL Kit:

1X Arkbird VTOL Vertical Takeoff And Landing Electric FPV Aircraft KIT;

Auxiliary Equipment:

Linden Wood;

Matchable screws;

Rudder Angel Installer;

Motors Installer;

Steel wires;

Velcros;

Recommend Parts (Not included):

Flight control: Arkbird 2.0 Lite or 2.0 flight control (Must be updated to latest version of V1.3011)
Servo: 9g*3pcs
Motor: 2208 KV1500 CW CCW
ESC: Hobbywing 20A ESC
Propeller: 6045 kingkong propeller
Battery: 4S 2200-3000mah 25C battery

Arkbird strongle suggest these devices to avoid compatibility problem!

Video of Arkbird VTOL Review:

1.UNBOXING AND INTRODUCTION of Arkbird VTOL:

Full set up video of Arkbird VTOL Plane Kit:

Maiden Video:

how the transmitter controls the plane in each mode:

https://www.youtube.com/watch?v=S4BGsr4PiEA&feature=youtu.be

Note: This item is KIT only, not included any electronic parts; BNF or PNP VTOL plane will be added soon, please add our store if you like it.

Manuals will be posted on our official website, soon!

‘
