Description
3648 Swiss Quality Motor Brushless Outrunner DC motor Strong power supply 600KV
The spec MP 3648 600KV as following:
Specification:
Rotational Speed :600 (kv) RPM/V
Max Watts(W):650W
Pull force:1400g
Max. Current :60A
Input Voltage :11.1-24v
No Load Current2.9A
No Load RPM:9000RPM
Torque:0.8-1.3N/m
Rotor Poles:14
Internal Resistance :35m(Omega)
Motor weight:153g
Banana plug:3.5mm

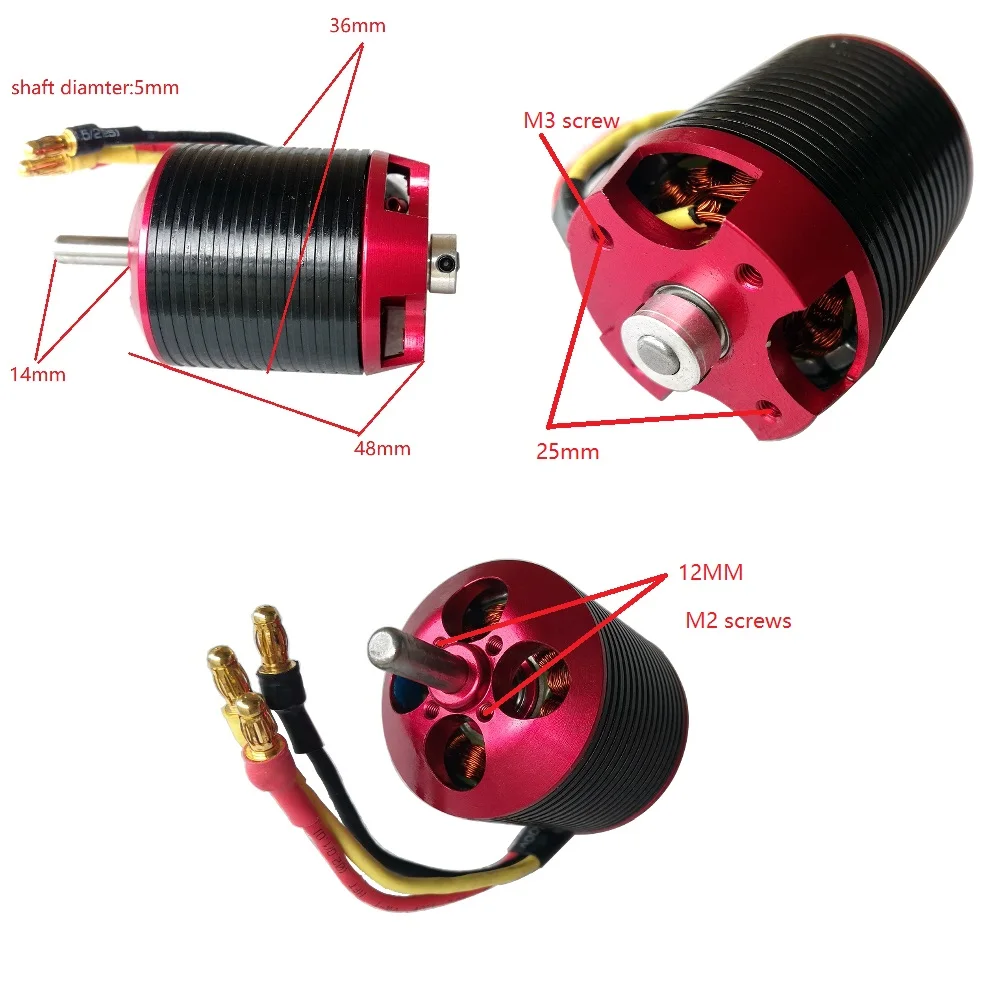

Motor Dimensions (Diameter x Length) :36mm x48mm
Shaft Diameter: 5mm，length：14mm
Propeller Dimensions : 11x 8, 13x 6,14x 7
Input Battery Types :3s-6s NiCd/ Nimh/ Li-po Battery
Applicable ESC Model : 45A
Recommend Model :Airplane
Package content:
1x3648kv600 motor
